Manual JDS

We offer Manual JDS Services for Permit with extra fast turnaround and 24h Delivery Available! about 20 years of experience ACCA approved this software using design and calculation.

Manual JDS provides technical information that HVAC users when choosing HVAC equipment for a residential application, confirm the system performance and energy efficiency value.

●Manual J provide perfect calculation the heating and cooling loads for the right capacity of HVAC equipment.
●Manual D provide perfect duct design and insure noise free airflow room-by-room and heating and cooling
●Manual S provide for accurate equipment selection.

Following these manual J Manual D and manual S helps avoid issues like system low performance, temperature disproportion and excess energy use, leading to enhanced indoor comfort, sustainability, and cost-effectiveness.

Get your Manual JDS

Manual JDS

Under 2000.00sqft: $200.00

Over 2000.00sqft: $0.10/sqft

●Manual D (Duct design)

-Duct layout
-Duct sizing
-Grille and Register sizing
-Static pressure report
-Register and Grille CFM

☆ ACCA Approved Manual JDS
☆ ACCA Approved Software “ Elite RHVAC”
☆ Accepted in all 50 US states*

Please confirm with your Local Municipality what their requirements are.
Shorter form available upon request.

Delivery Time
3-4 days (depending on the size of the project)
Express Delivery for 24h Available

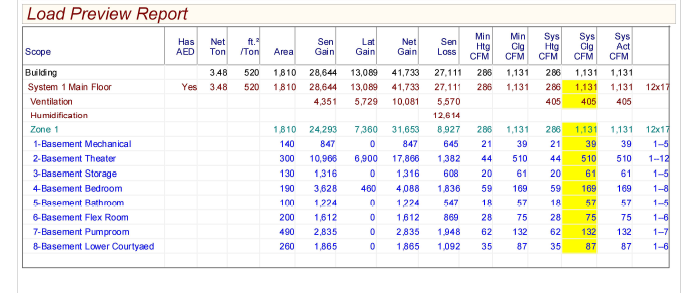

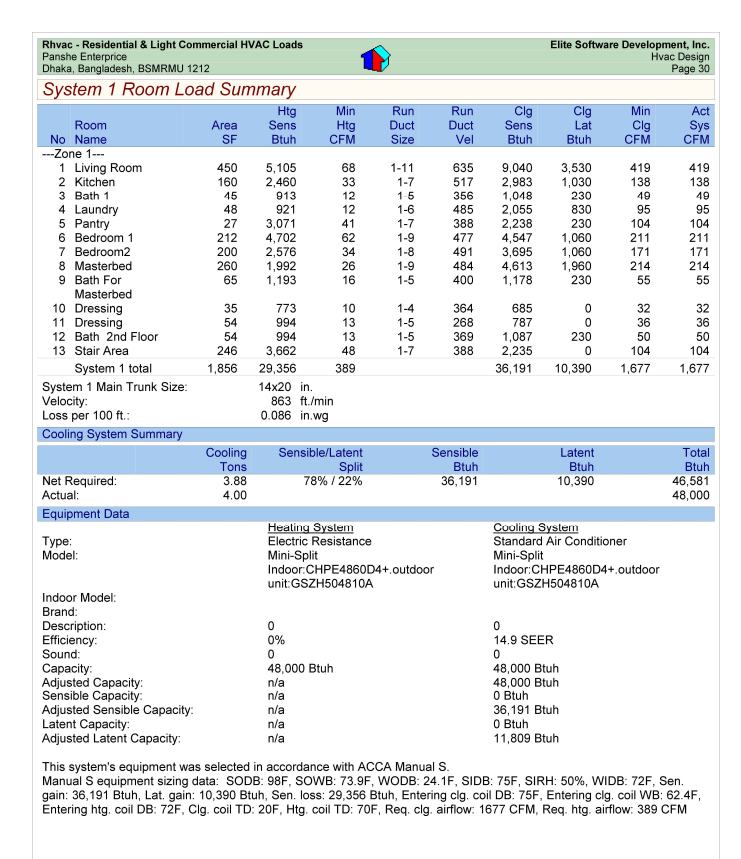

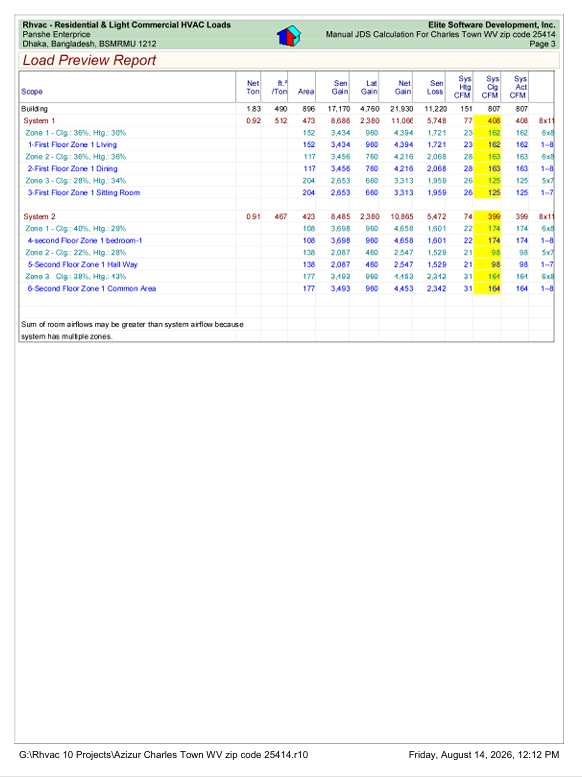

Download Manual JDS Sample Report

HVAC Design Manual JSD

MANUAL J,S,D

Floor plans that include the following information:
All interior wall R value
Floor R value
Celling/Roof-R Valu and height
Window , Glass size U value and SHGC value
All condition area room name

we need floor plan for all measurement. if you don't have the floor plan, you can creat a hand sketch drawing in shows all measurement
Basement floor crawl space heated/cooled and included in the calculations?

What type of HVAC system are you installing? Heat pump/mini split /gas furcace/ package roof top/chiller,pump,FCU, AHU, FAHU/ VRF/ VAV System

What type of duct system are you looking to get designed?

Square metal trunk round branches

Round metal trunk round branches

Flex trunk & branch

Flex trunk Y joint

Brand of preferred equipment and preferred equipment series?

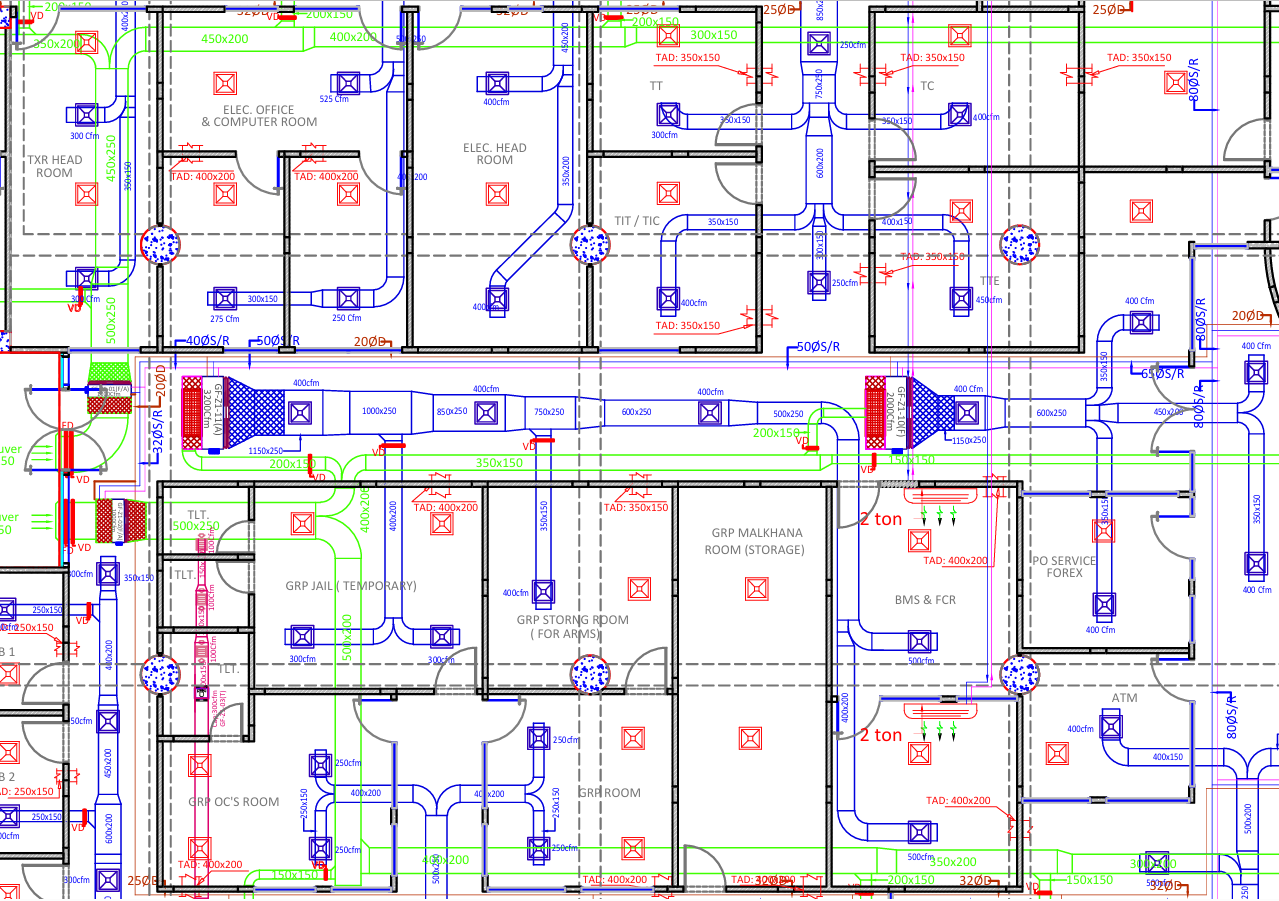

Download the example drawing

Questions & Answerer

Package and Project Requirements

What’s included in the Manual JDS package??

A Residential Room by Room Manual J (Load calculations), Manual S (Equipment selection), Manual D (Duct design). The manuals are performed using the ACCA-approved software “Elite RHVAC” and follow ACCA Manual JDS standards.

What's the delivery time??

The delivery time is most often between 3-4 days, depending on the size of the project. Once I review your file, I'll send you a price quote, which will include the delivery time, and it's guaranteed that I'll deliver on time or early. The delivery time starts once the invoice is paid in full. Express delivery is available for an extra charge!

What software do you use??

I use the ACCA-certified “Elite RHVAC” program, which I find to be the most accurate and detailed on the market.

Are you familiar with the most up-to-date mechanical codes??

Yes, I am a Master HVAC Contractor License holder for the state of New Jersey and must have code update classes to maintain my license. I have completed well over 5000 load calculations for various states.

What's not included in the Manual JDS??

Anything not covered by Manual JDS.

Services that can be added to Manual JDS.?

ERV/HRV Design: $50 per ERV/HRV system Material takeoff: $150, over 3500sqft. Radiant design: $0.10/sqft if purchased together with a Manual JDS or Room-by-Room Manual JS. if ordered with Manual JDS/JS - If ordered without a Manual JDS/JS it's $140 for a house under 2000sqft and $0.07/sqft for a house over 2000sqft. if ordered with Manual JDS/JS - If ordered without a Manual JDS/JS it's $140 for house under 2000sqft and $0.07/sqft for a house over 2000sqft. Express delivery: Varies based on the size of the house.

Can this be used to get a permit??

Yes, it can. Most jurisdictions require these calculations to obtain a Permit to start construction. The Manual JDS is accepted in all 50 states.* Some states might require additional forms, such as Florida R405, or California Title 24, which can be purchased additionally.
